Pharmaceutical Process Validation: IQ OQ PQ & Lifecycle Explained

In regulated pharmaceutical manufacturing, pharmaceutical process validation is far more than a compliance exercise completed before product launch or retained for auditor review. It is a scientific, lifecycle-based approach designed to ensure that manufacturing processes consistently produce products meeting predefined quality, safety, and performance requirements.

The goal of pharmaceutical process validation is to move manufacturers away from “testing quality into a product” and toward a true Quality by Design (QbD) model, where quality is intentionally built into the process itself.

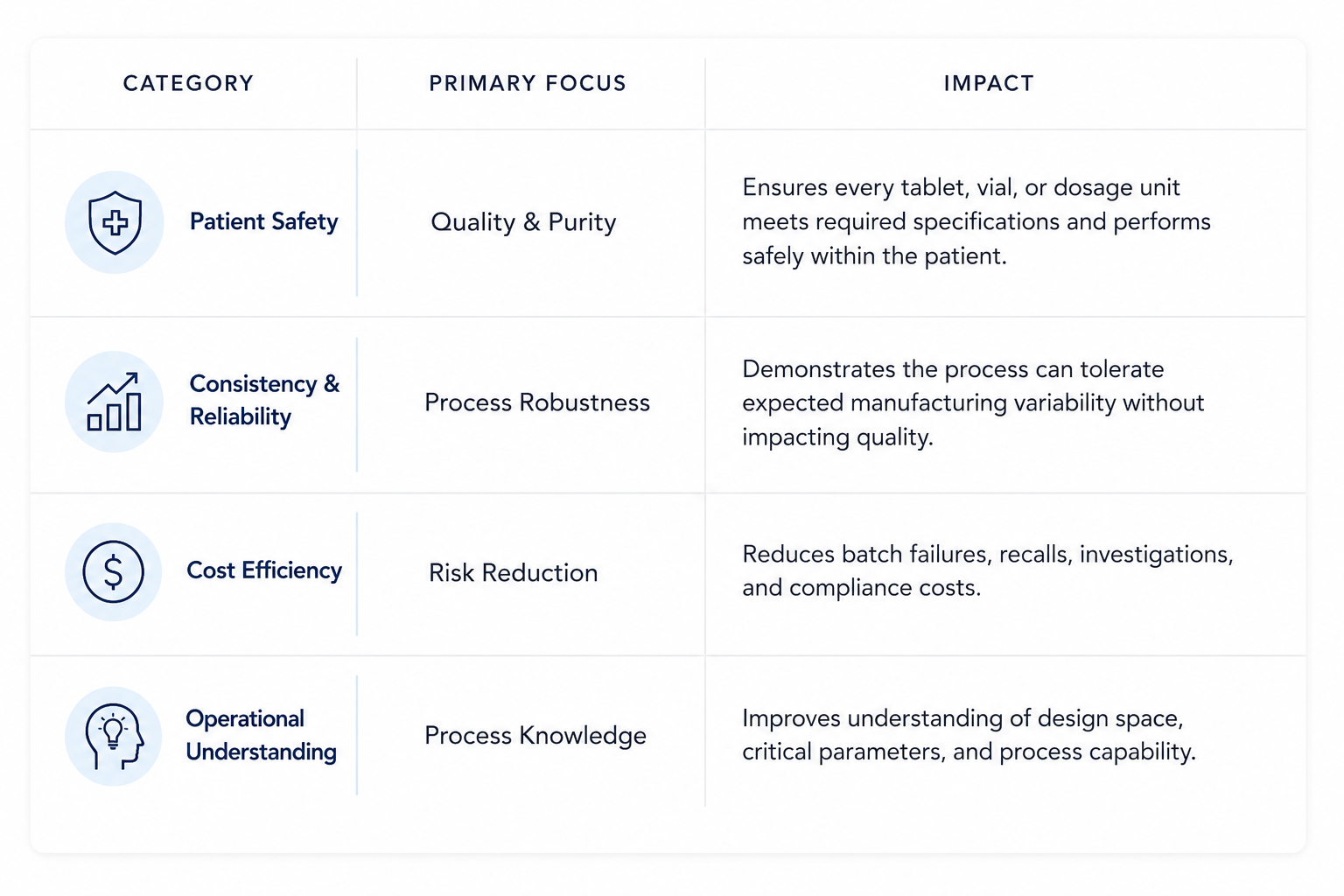

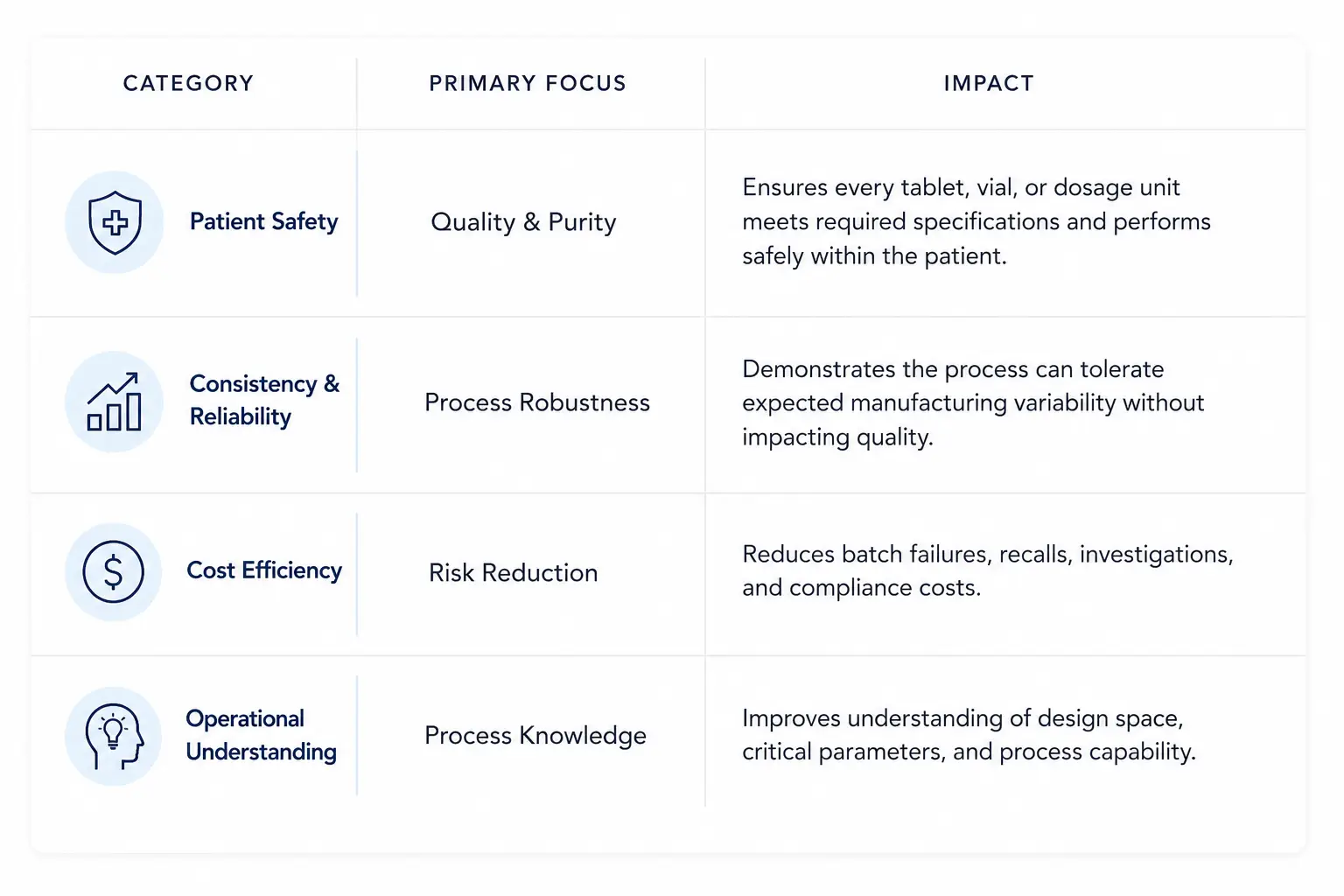

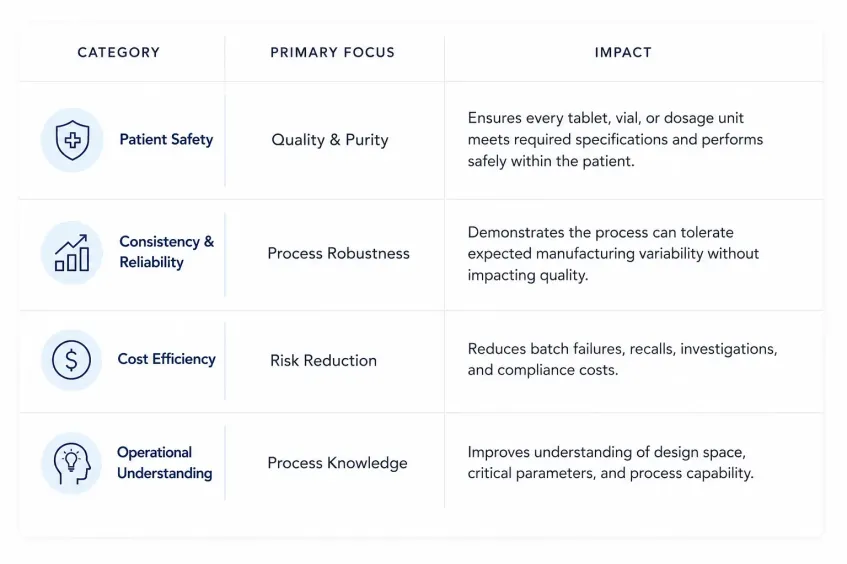

This approach delivers value across several critical areas:

Beyond the “Rule of Three” – The Shift to Lifecycle Validation

Historically, validation was often reduced to producing three successful qualification batches.

However, the FDA’s 2011 Process Validation Guidance transformed this approach, introducing a lifecycle model centred around scientific understanding, risk management, and continuous improvement.

Modern pharmaceutical process validation now recognises that:

1. Quality must be designed into the manufacturing process.
2. Product testing alone cannot guarantee quality.
3. Each manufacturing stage must remain controlled throughout the product lifecycle.
4. Validation continues long after initial qualification activities are complete.

As validation approaches evolve, many organisations are moving from traditional validation models toward Computer Software Assurance (CSA) methodologies and risk-based validation approaches

The Three-Stage Pharmaceutical Process Validation Lifecycle

Regulators including the FDA and EU GMP frameworks define pharmaceutical process validation as a three-stage lifecycle integrating development, qualification, and ongoing monitoring.

The lifecycle links:

• Product development
• Equipment qualification
• Commercial process validation
• Continued monitoring
• Lifecycle control strategies

Stage 1 – Process Design

The first phase establishes the commercial manufacturing process based on process development knowledge and scale-up studies.

During this stage manufacturers define:

• Quality Target Product Profile (QTPP)
• Critical Quality Attributes (CQAs)
• Critical Process Parameters (CPPs)
• Design Space
• Control Strategy

Process understanding developed here becomes the foundation for later IQ OQ PQ validation activities.

Where digital systems support manufacturing processes, validation planning may also intersect with:

Stage 2 – Process Qualification

Stage 2 confirms that the designed process is capable of reproducible commercial manufacturing.

This phase combines:

• Process Performance Qualification (PPQ)
• Utility qualification
• Equipment qualification
• Supporting system validation
• Equipment validation services
• IQ OQ PQ validation

Many organisations refer to this collectively as equipment validation services, ensuring manufacturing systems, utilities, automation layers, and supporting infrastructure operate according to predefined requirements.

Installation Qualification (IQ)

Installation Qualification forms the first stage of the broader IQ OQ PQ validation framework.

IQ verifies that equipment, utilities, automation systems, and supporting infrastructure are installed correctly according to approved specifications.

Activities typically include:

Physical & Design Verification

• Equipment identification
• Material verification
• Product contact surface review
• URS compliance checks
• Design specification confirmation

Infrastructure Verification

• Electrical services
• Compressed air systems
• PW/WFI connections
• Firmware verification
• Software configuration review
• Safety interlocks

Calibration & Compliance

• Instrument calibration
• Traceability checks
• Documentation review
• Regulatory evidence collection

IQ establishes the documented baseline configuration that supports all subsequent qualification activities.

Operational Qualification (OQ)

Operational Qualification demonstrates that equipment performs correctly across defined operating ranges.

Within the wider IQ OQ PQ validation approach, OQ confirms:

Boundary Testing

Verification of:

• Upper operating limits
• Lower operating limits
• Worst-case conditions
• Repeatability

Functional Verification

Testing includes:

• PLC logic
• SCADA functionality
• Setpoints
• Sequencing
• Alarm management
• Automated workflows

This area increasingly overlaps with automation validation pharma activities, particularly in digitally enabled facilities using MES, PLC, SCADA, historians, and integrated manufacturing systems.

Failure & Safety Testing

Testing may include:

• Power interruption
• Sensor failures
• Alarm response
• Interlock functionality
• Emergency conditions

OQ demonstrates that systems operate safely and predictably even during abnormal scenarios.

Performance Qualification (PQ)

Performance Qualification confirms that systems perform consistently under routine operating conditions.

PQ activities generally include:

• Use of production materials or justified surrogates
• Operator variability assessment
• Batch consistency evaluation
• Shift comparison studies
• Process load testing
• Hold time verification

PQ demonstrates that manufacturing systems operate effectively within a realistic production environment.

Together, IQ, OQ, and PQ form the core IQ OQ PQ validation framework supporting commercial manufacturing readiness.

Relationship Between IQ, OQ, PQ and PPQ

The qualification sequence provides documented evidence that:

IQ

The system is installed correctly.

OQ

The system functions within approved ranges.

PQ

The process performs reliably during intended operation.

These activities establish the technical foundation for Process Performance Qualification (PPQ).

Process Performance Qualification (PPQ)

PPQ represents the culmination of Stage 2 within pharmaceutical process validation.

PPQ confirms that the commercial process consistently produces acceptable product at manufacturing scale.

PPQ typically involves:

• Commercial batch execution
• Production personnel involvement
• Routine equipment usage
• Enhanced sampling plans
• Statistical assessment of CQAs
• Variability analysis

For highly automated environments, PPQ may also align with automation validation pharma activities where manufacturing execution systems, automated controls, and digital workflows support production.

Successful PPQ provides evidence that the process is ready for routine commercial manufacturing.

Stage 3 – Continued Process Verification (CPV)

Maintaining Pharmaceutical Process Validation Throughout the Product Lifecycle

Validation does not end after PPQ.

Modern pharmaceutical process validation transitions into continued process verification (CPV) to ensure manufacturing processes remain in a state of control throughout commercial production.

Continued process verification uses live production data to monitor process performance and detect emerging variability.

Typical CPV activities include:

Monitoring Critical Parameters

• Critical Process Parameters (CPPs)
• Critical Quality Attributes (CQAs)
• Control chart analysis
• Process capability studies

Statistical Process Control

Application of:

• SPC tools
• Trend monitoring
• Drift detection
• Variability analysis

Deviation Monitoring

Review of:

• Deviations
• OOS events
• OOT results
• CAPA effectiveness

Periodic Review Activities

• Annual Product Reviews
• Continued risk assessments
• Control strategy evaluation
• Lifecycle performance review

These activities support long-term GMP manufacturing validation by ensuring the process remains effective and compliant over time.

From Qualification to Lifecycle Control

Effective pharmaceutical process validation extends well beyond initial qualification activities.

Through structured equipment validation services, IQ OQ PQ validation, Process Performance Qualification, and continued process verification, manufacturers establish a lifecycle framework capable of maintaining quality, compliance, and operational control.

Modern validation programmes increasingly integrate:

• Risk-based approaches
• Computer Software Assurance (CSA)
• Digital manufacturing systems
• Automation validation pharma
• Data integrity controls
• Continuous monitoring strategies

This evolution moves organisations beyond testing quality into products and toward a true lifecycle approach supporting robust GMP manufacturing validation and sustained process performance.
